Raman
Raman is a window and door series at a system width of 60 mm - the depth of the main profile the frame and sash are built on. The catalogue prints 5 main profiles for it on page 16.
Request a quote
What the series is made of
Each series is a set of profiles that work together. The frame is the fixed outer member set into the wall opening; the sash is the moving part that carries the glass; the middle registration divides two sashes, or a sash from a fixed light; and the casing frame closes the junction between frame and wall. The cards below show what the catalogue prints for this series specifically.
A, B and C are the dimension leaders drawn on the section itself: A the visible width, B the profile depth, C the overall height of the part as marked on the drawing.

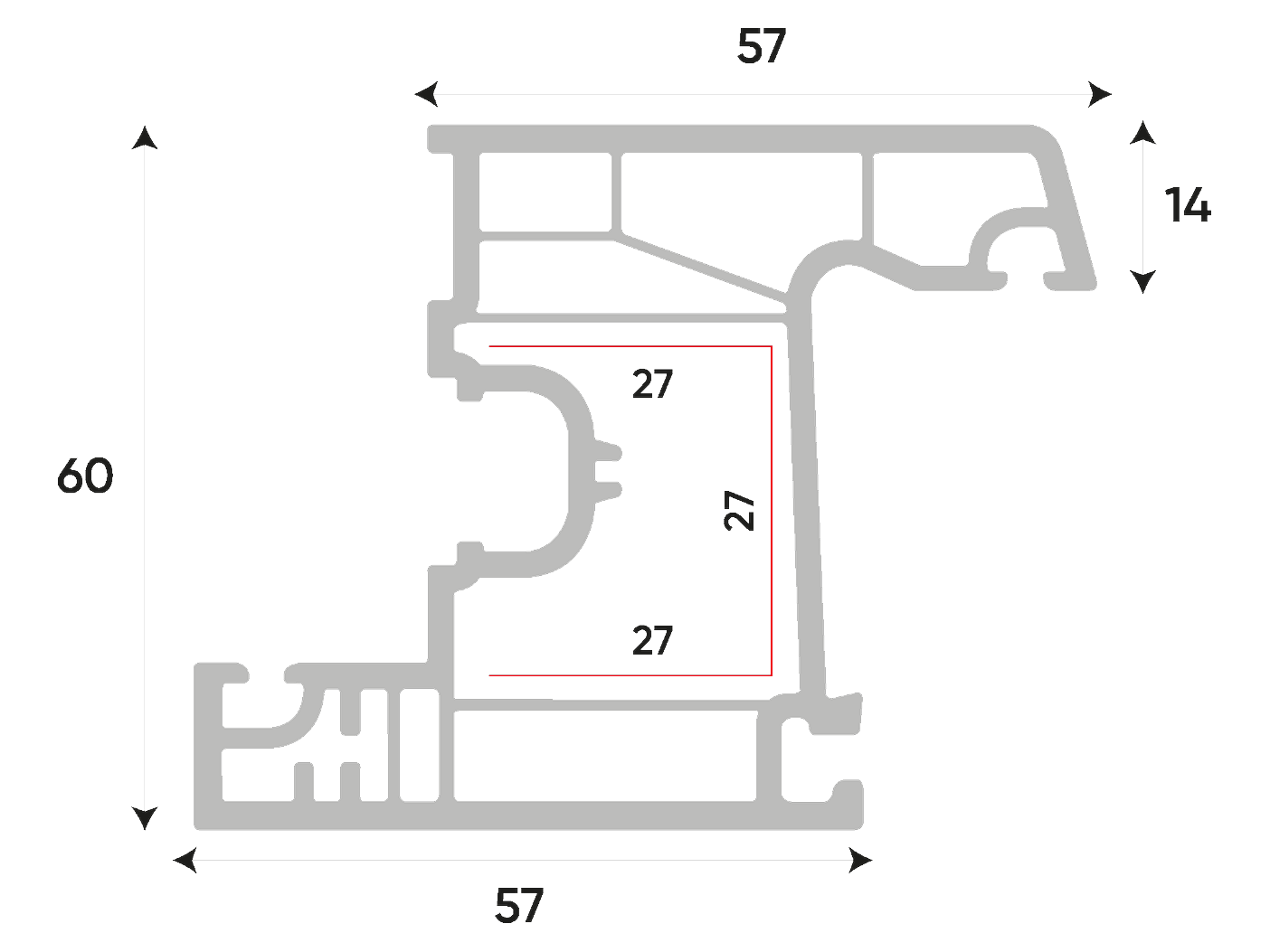

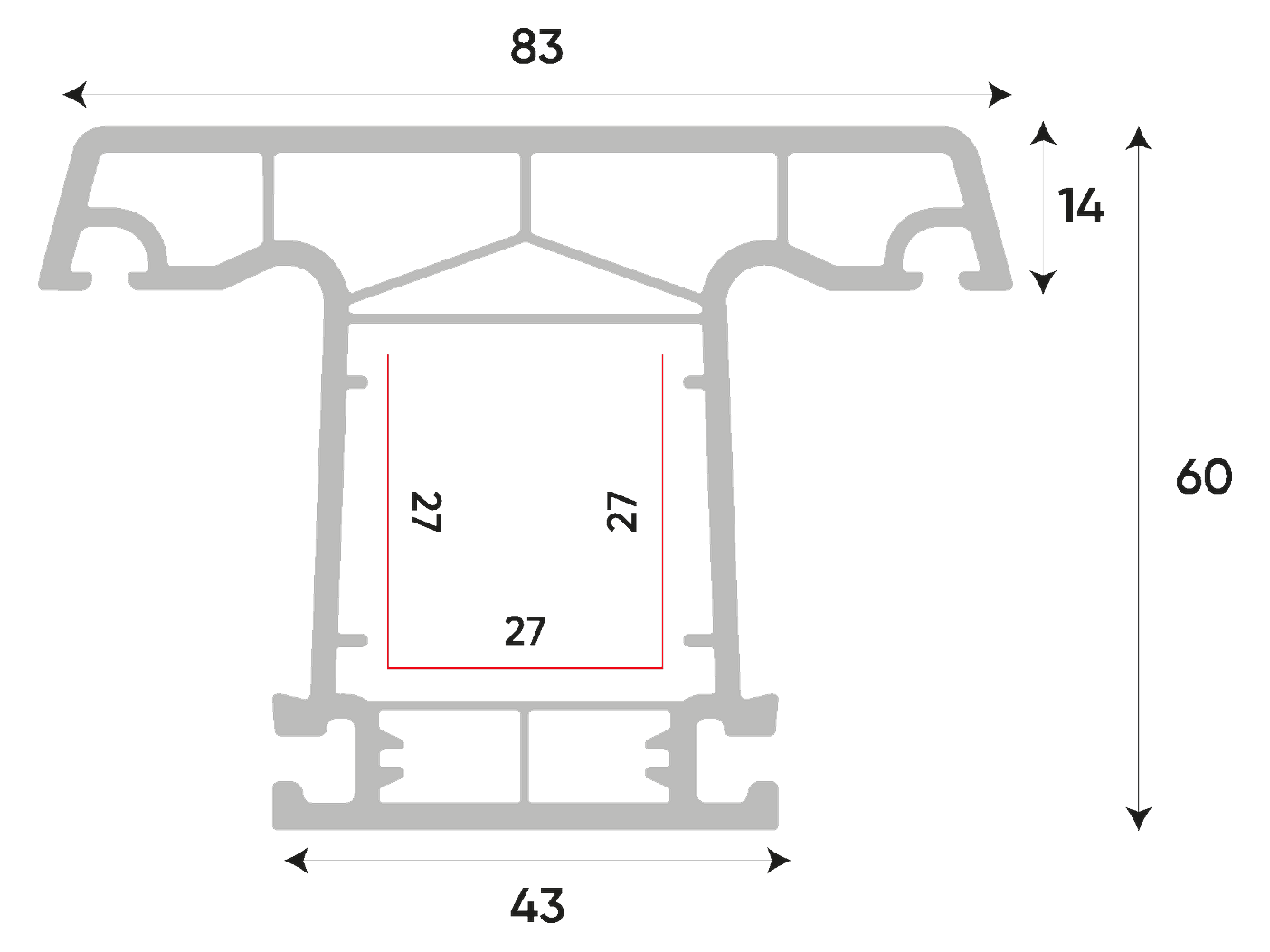

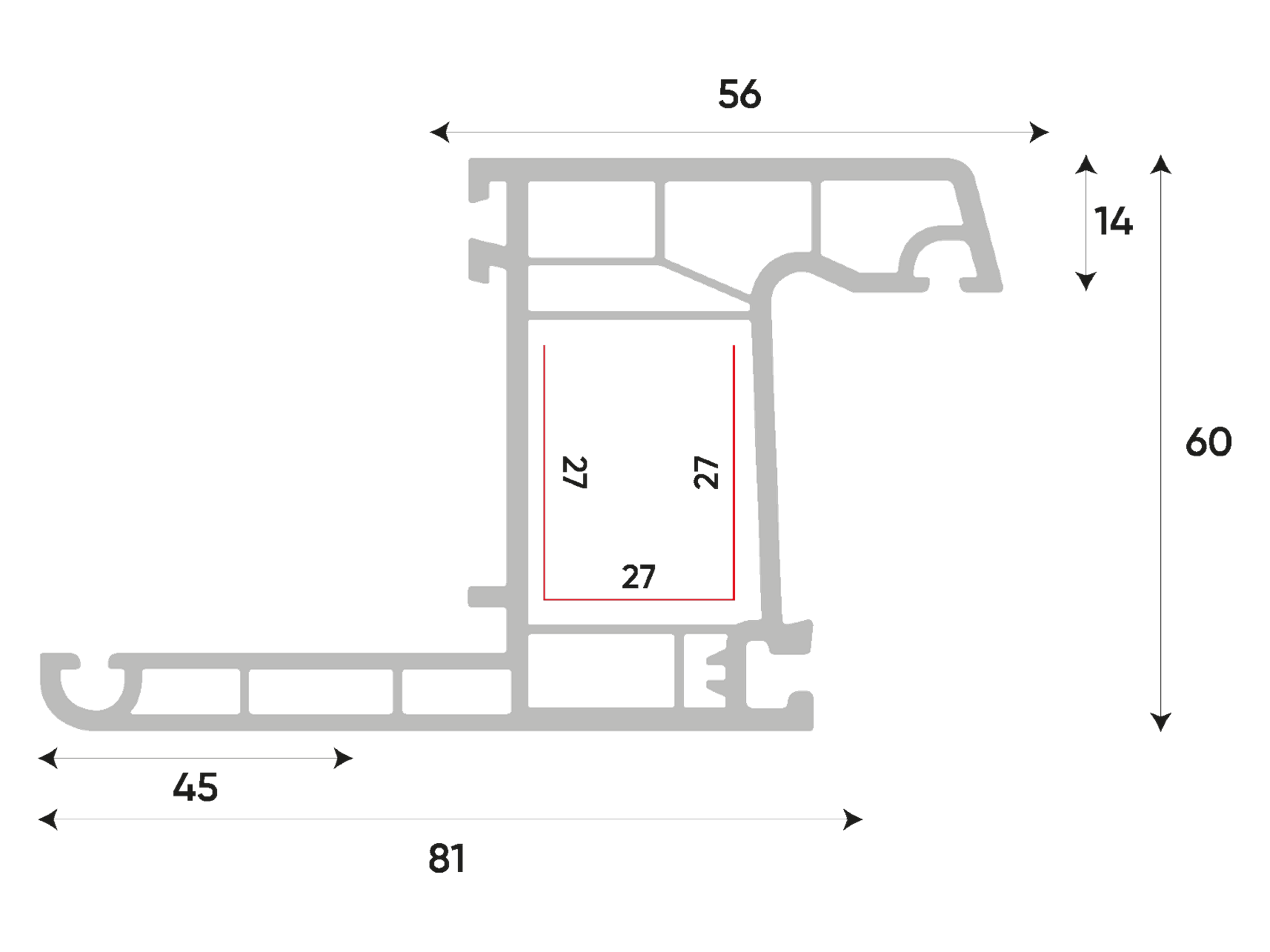

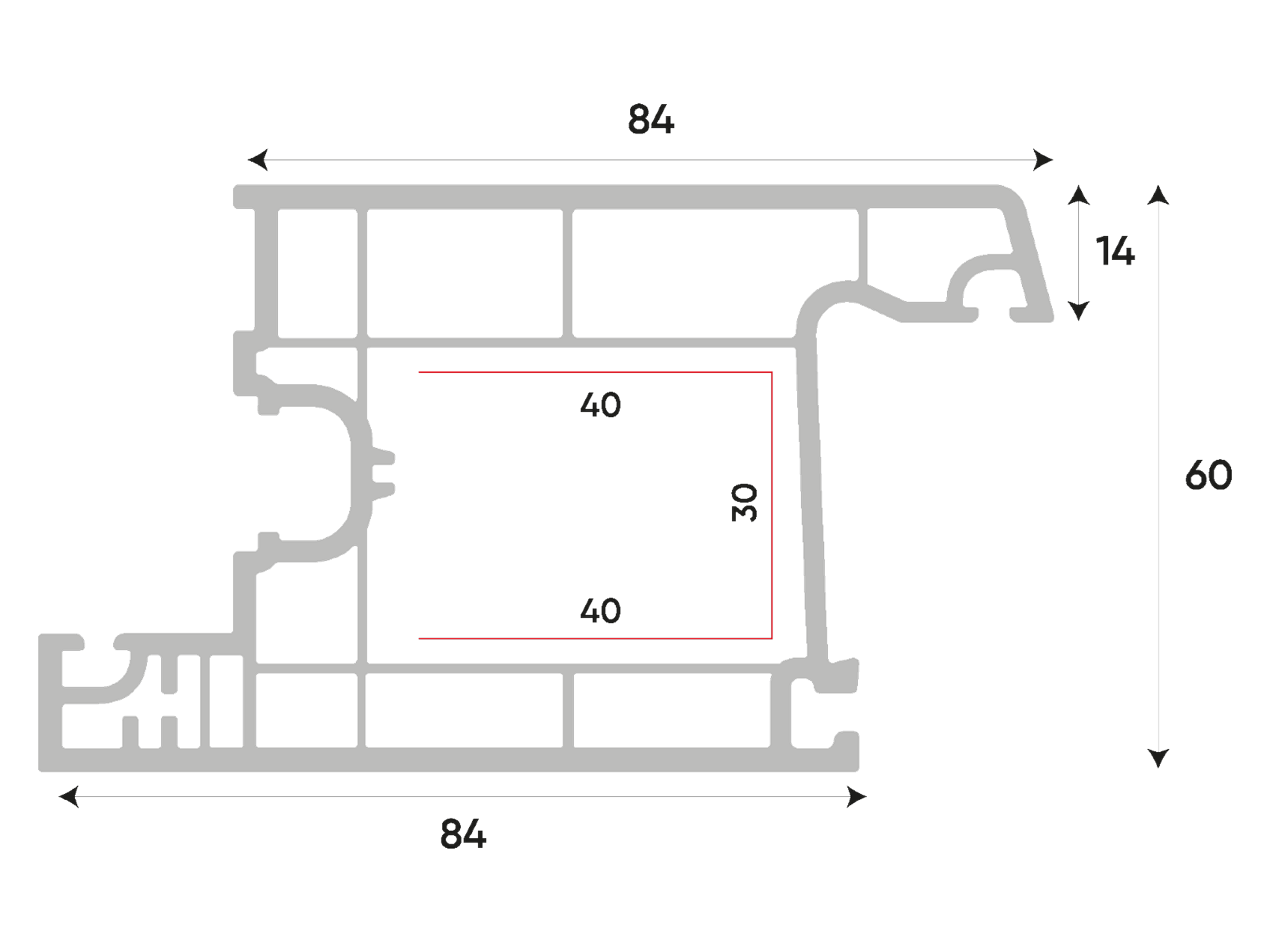

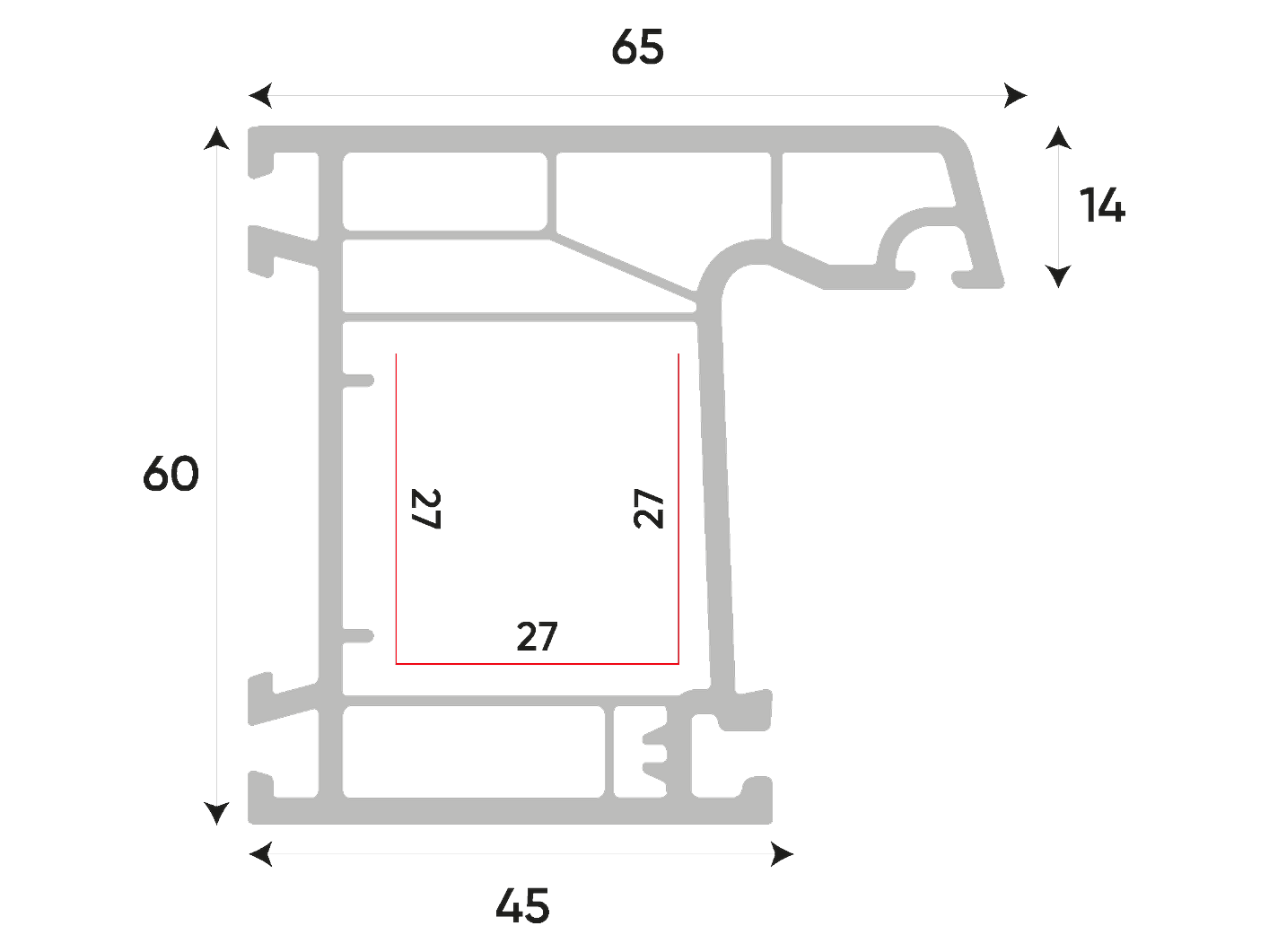

The cross-section of each profile with its chambers and dimension leaders, as published in the catalogue. The fabricator uses it to fix the right code before cutting; the engineer carries it into a specification.
Source note: This series shares profile codes R6001-R6005 with Toros, but the printed dimensions differ between the two catalogue pages. Confirm the code and dimensions with us before fixing the order.
Every code and dimension below is reproduced as printed in the source technical drawing catalogue. No figure absent from it has been added.
The glazing bead is the profile that holds the glass inside the frame, and its thickness follows the glass build-up.
| Thickness | Glass build-up | Double code | Single code |
|---|---|---|---|
| 20 mm | 4-12-4 | R6008 | R6009 |
The catalogue prints no separate colour chart for this series; the range in use is the one printed for Toros.
What you see on screen is an approximation, not a sample. Request a physical sample before the final decision, and colour availability is confirmed at the time of order.
All coloursTrade enquiry for this series
Send us the codes you need, the quantities, the finish and your location, and we will come back with a quotation and technical and commercial follow-up.
